The era is changing, and the solar industry has also faced the continuous rise because of its sustainability and the new technological milestone.
Among these famous solar technologies, the TOPCon solar photovoltaic cells are the best ones to capture the limelight.
They represent the next evolution in solar cell design, and they are reshaping how we harness sunlight for clean, renewable energy.
Well, a deeper understanding of how photovoltaic cells work is essential not just for engineers and manufacturers but also for businesses and consumers.
And that’s what we will discuss in this blog here. Also, we will talk about the best manufacturer of these solar technologies, like Emmvee, who value long-term energy yield and sustainability.
Let’s start with the overview.
Overview of TOPCon Solar Cell
TOPCon is an acronym for Tunnel Oxide Passivated Contact, a new generation solar cell architecture that increases efficiency and performance compared to standard crystalline silicon (c-Si) solar cells.
These cells essentially add a thin tunnel oxide layer and a doped polycrystalline silicon film on the rear surface of the cell.
While PERC (Passivated Emitter and Rear Cell) enhanced back-surface passivation and light absorption, it had recombination issues at higher operating temperatures.
TOPCon gets rid of this limitation by forming a more stable and selective contact for electrons, which results in better performance and durability.
Emmvee, the solar innovation leader, has been one of the organizations that has seen the promise of this technology from the very beginning.
After getting the overview, let’s explore the structure and working mechanism of these cells.

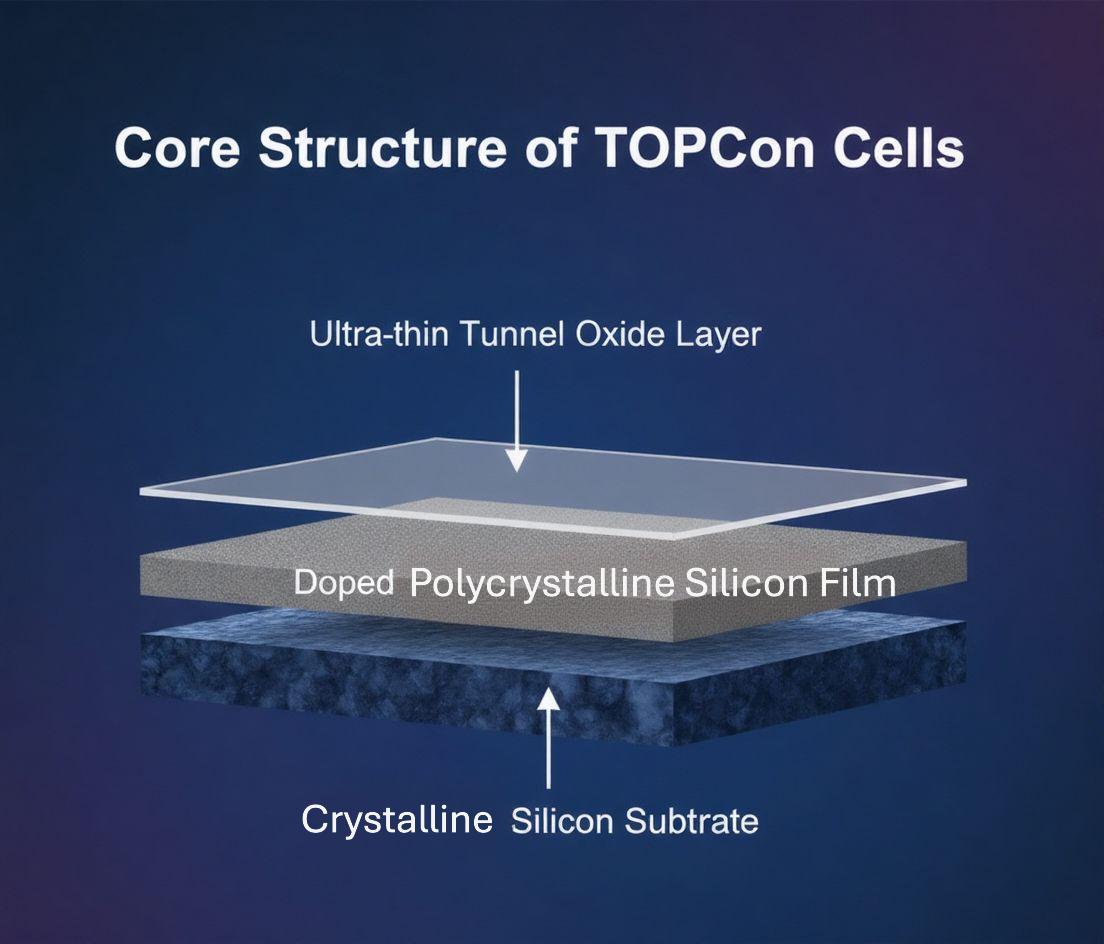

Core Structure of TOPCon Cells
The structure of a TOPCon solar photovoltaic cell is both intricate and purposeful. It comprises three main components:
Ultra-thin Tunnel Oxide Layer: Typically around 1–2 nanometers thick, this layer allows electrons to “tunnel” through while blocking holes, ensuring excellent carrier selectivity.
Doped Polycrystalline Silicon Film: Positioned above the oxide layer, this film acts as a passivated contact that minimizes electron recombination losses.
Crystalline Silicon Substrate: The base material where sunlight is absorbed and electron-hole pairs are generated.
Compared to PERC or PERT cells, the TOPCon structure adds the oxide and polysilicon combination that drastically improves charge carrier management.
This small yet significant modification boosts the overall solar photovoltaic cell working efficiency without requiring a complete overhaul of existing production lines.

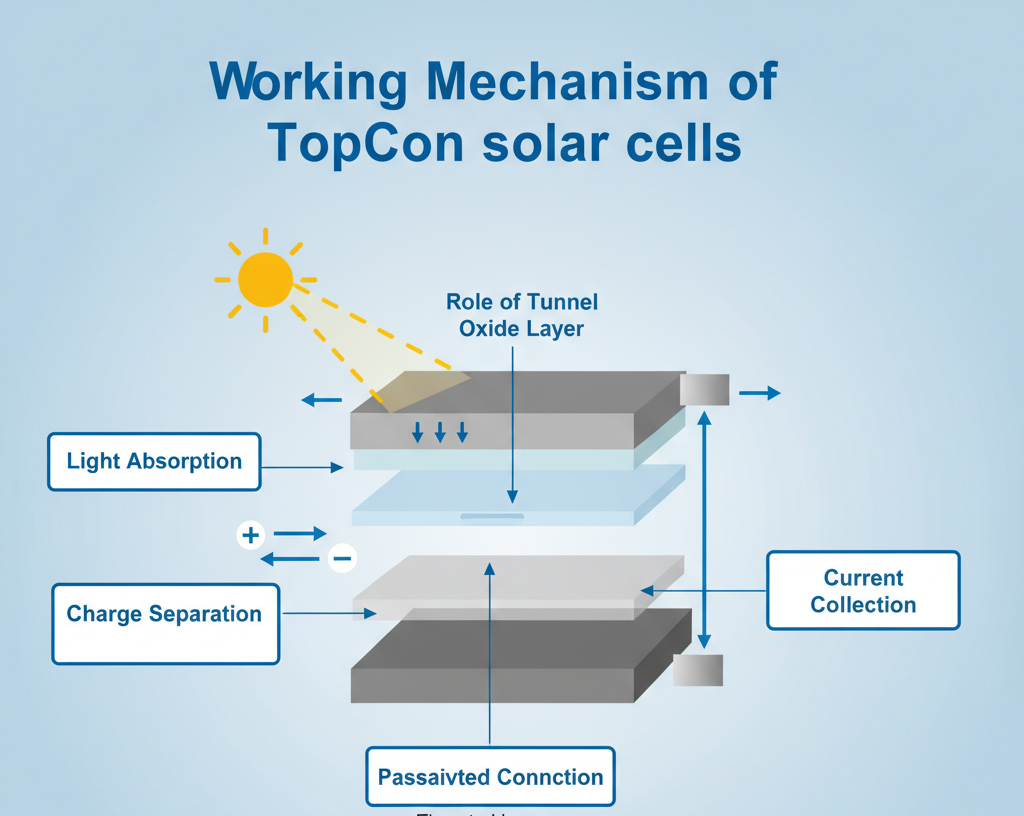

Working Mechanism of TopCon solar cells

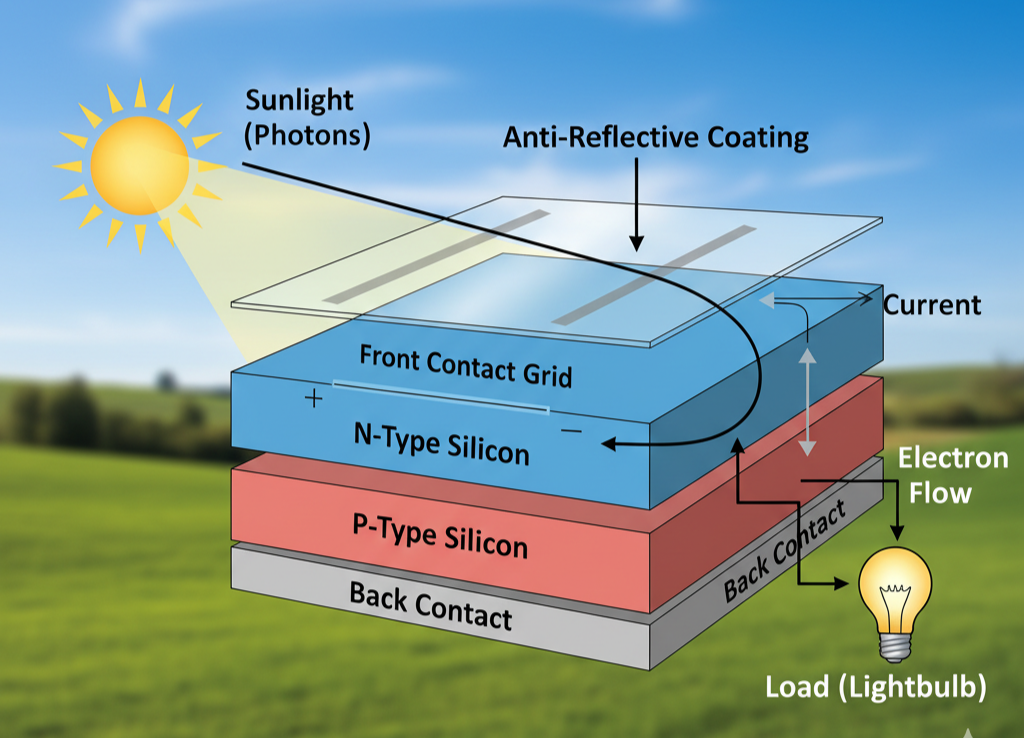

To know how PV cells work, let's start with the step-by-step energy conversion process in a TOPCon solar cell:
Light Absorption
As sunlight hits the silicon wafer, photons give their energy to electrons in silicon atoms, releasing them and forming electron-hole pairs.
Charge Separation
The intrajunction electric field directs electrons and holes into opposite directions, electrons into the rear passivated layer and holes into the front contact.
Role of Tunnel Oxide Layer
The extremely thin oxide layer serves as a selective barrier, allowing electrons to tunnel through with ease while inhibiting holes from combining with them. This process is central to high efficiency.
Passivated Contact Function
The doped polysilicon film reinforces passivation, helping to retain minimal electron loss and remaining stable even when exposed to high light intensity or temperature.
Current Collection
Lastly, the electrons that have been separated pass through metal electrodes, producing direct current electricity, which can be converted into alternating current using an inverter for practical application.
This efficient and streamlined electron flow is the reason why TOPCon technology ranks amongst the most promising available when one is considering how solar photovoltaic cells function.
Also Read : What are the Advantages and Disadvantages of Photovoltaic Cells

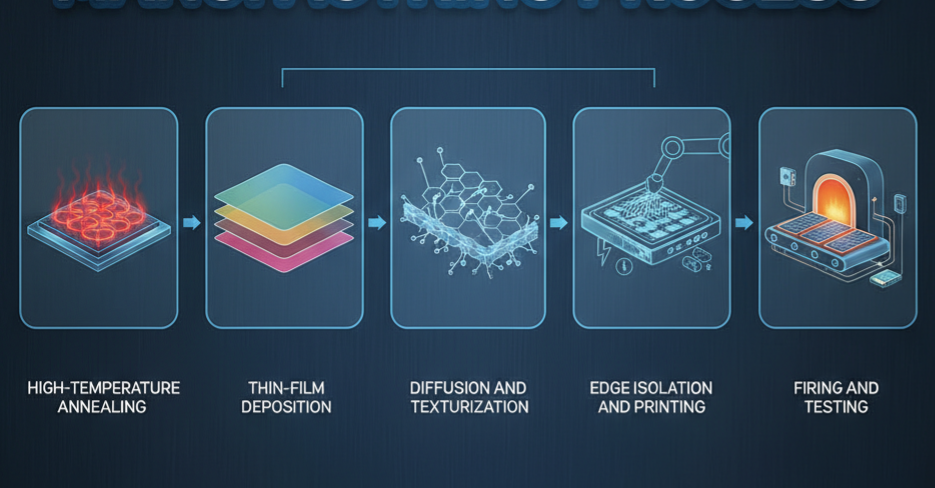

Manufacturing Process
Though the underlying technology is cutting-edge, TOPCon manufacturing is aimed at being fully compatible with current PERC manufacturing lines, thereby being cost-effective and scalable.
The Major Process Steps are:
High-Temperature Annealing: Improves tunnel oxide and polysilicon layer quality for enhanced passivation.
Thin-Film Deposition: Employs advanced chemical vapor deposition (CVD) methods to deposit uniform layers of polysilicon.
Diffusion and Texturization: Enhances light trapping and charge collection efficiency.
Edge Isolation and Printing: Provides electrical isolation and metallization-readying of the cell.
Firing and Testing: Last steps that improve contact quality and confirm overall performance.
Emmvee applies these optimized processes with accuracy to attain greater consistency, reduced defect rates, and improved yield in batches.

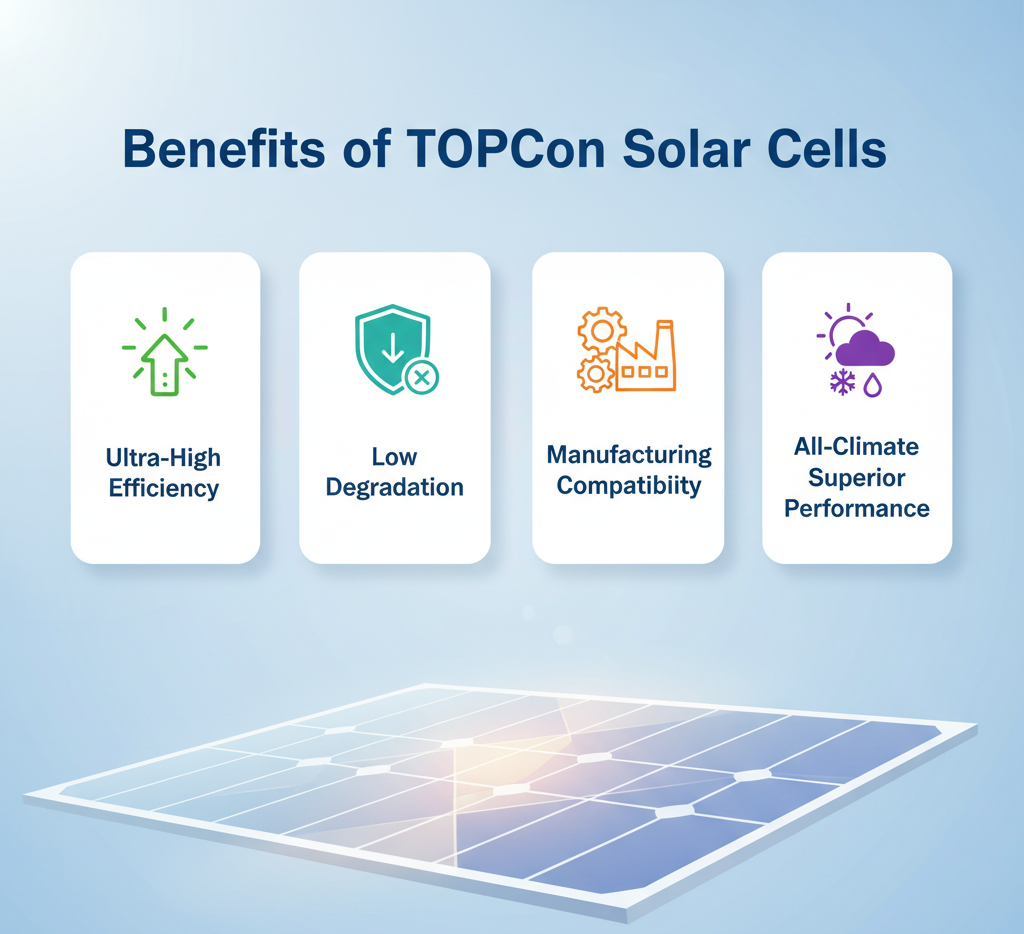

Benefits of TOPCon Solar Cells
Ultra-High Efficiency
Tunnel oxide and passivated contact combination enables higher sunlight-to-electricity conversion, delivering maximum power output per square meter.
Low Degradation
TOPCon cells have low light-induced degradation (LID) and improved thermal stability, maintaining performance for decades.
Manufacturing Compatibility
As upgrades can be applied to current PERC lines, mass adoption is both viable and cost-effective.
All-Climate Superior Performance
TOPCon solar panels are highly suitable for both high-temperature and low-lighting environments, which is great for a wide range of geographical locations.
The adoption of TOPCon technology into production is an advancement in the delivery of efficient solar panels with more investment returns for customers globally.
To Wrap up
The development of TOPCon solar photovoltaic cells is a new generation of renewable energy technology.
Through the integration of high-end passivation, precise electron control, and cost-effective production, TOPCon technology bridges the gap between laboratory discovery and effective use.
Being aware of how PV cells work, especially through innovations like TOPCon, allows us to better appreciate how solar energy is continually advancing toward improved performance and sustainability.
With Emmvee and other leading solar manufacturers adopting this future-proof method, the future of renewable energy has never looked brighter, powered by intelligent design, science-backed precision, and a vision for a greener future.
